Gürdağ Brick Factory
Carbonized EPS Mantle Brick
Carbon wool-filled, high-strength interlocking structural element
GÜRDAĞ Manto Brick is an exterior wall construction element that provides a high level of heat and sound insulation thanks to its special structure filled with mineral wool. It is frequently preferred in buildings that require energy efficiency such as hotels, residences, workplaces, hospitals and schools. With this feature, it not only provides individual savings, but also contributes to the national economy.
The product is produced in different types such as exterior wall elements, partitions and lintels and can be integrated into all building systems.
GÜRDAĞ Manto Brick, which gains clinker properties thanks to the clay fired above 1000°C, has much higher compressive strength and structural strength than alternative block materials.
It also offers a high level of sound insulation thanks to the mineral insulation board and density in its structure.
Bricks with the Interlocking Design System are fully interlocked and do not require the use of mortar in vertical joints. This prevents thermal bridges, minimizes heat losses and saves mortar. It is both economical and easy to implement.
| Compressive Strength (N/mm²) => | Lambda λ (W/(mK)) => | Thermal Conductivity => | Acoustics => |
|---|---|---|---|
| 2,5 | 0,25 | 2,14 | 48 |

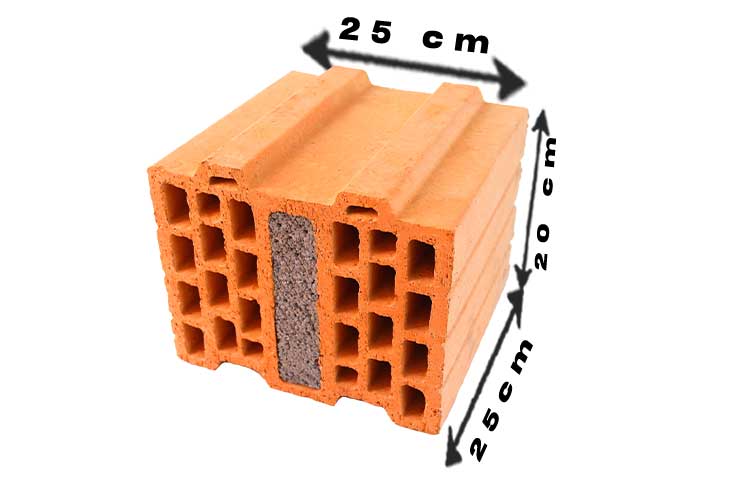

Carbonized EPS Mantle Brick
Length : 25 cm (± 0,5 cm)
Width : 25 cm (± 0,5 cm)
Height : 20 cm (± 0,5 cm)
Consumption per square metre :20 Adet
Advantages
- Saves energy thanks to its high thermal insulation; reduces invoice costs.
- Provides effective sound insulation with mineral wool filling.
- Provides high compressive strength and long life thanks to clay fired over 1000°C.
- With its interlocking structure, it reduces the need for mortar and prevents thermal bridges.
- Easy to apply, reduces labor time and increases productivity.
- A1 class fireproof building material, offers extra safety against fire.
- It is environmentally friendly and recyclable with its 100% natural material content.
